UPS System

Reliable power backup solutions designed to ensure uninterrupted operation of critical systems during power outages or fluctuations.

1. Overview

• Definition: A UPS (Uninterruptible Power Supply) system provides immediate power backup and surge protection to connected devices, preventing disruptions caused by power outages or instability.
• Importance:
  • Protects sensitive equipment from data loss and hardware damage.
  • Maintains uptime for critical operations across industries.

2. Key Components

1. UPS Types:
   • Line-Interactive UPS:
     • Description: Automatically regulates voltage fluctuations while providing backup power.
     • Applications: Ideal for small businesses, offices, and home setups.
     • Power Range: 400VA to 3000VA.
   • Online UPS (Transformer-Less):
     • Description: Provides continuous, high-quality power by converting AC to DC and back to AC.
     • Applications: Suitable for IT equipment, healthcare devices, and industrial setups.
     • Power Range: 1kVA to 20kVA (tower or rack-mounted options).
   • Online UPS (Transformer-Based):
     • Description: Designed for heavy-duty operations with robust surge protection.
     • Applications: Data centers, large-scale industrial operations.
     • Power Range: 10kVA to 50kVA.

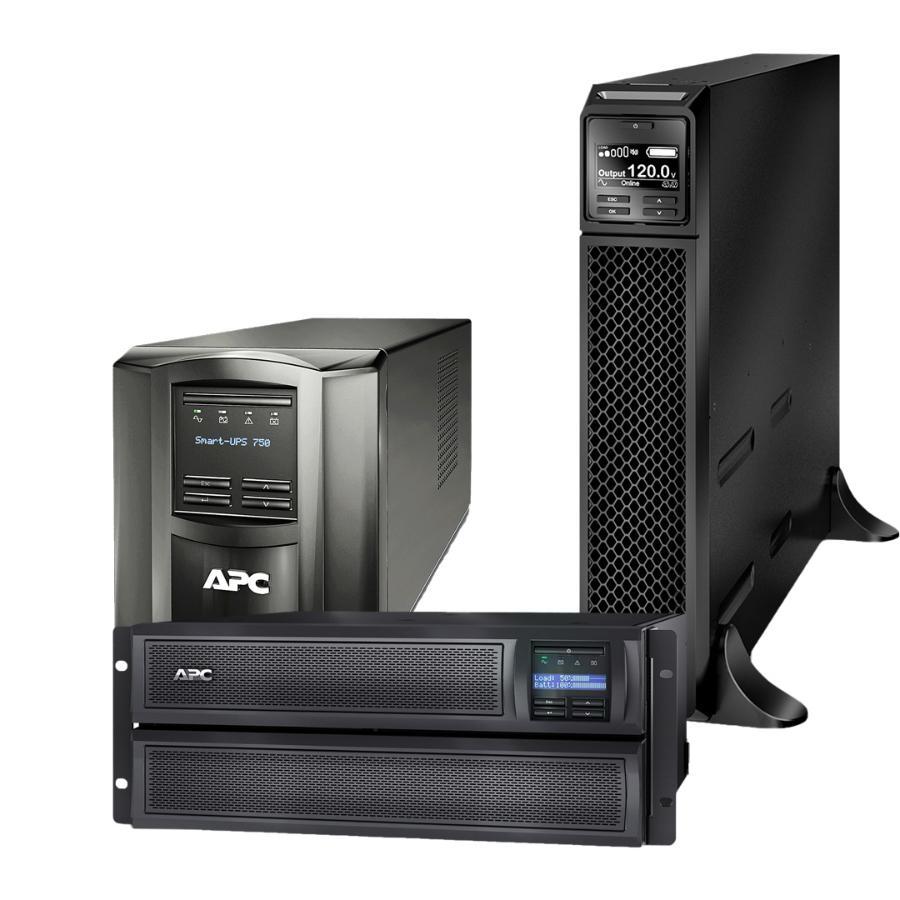

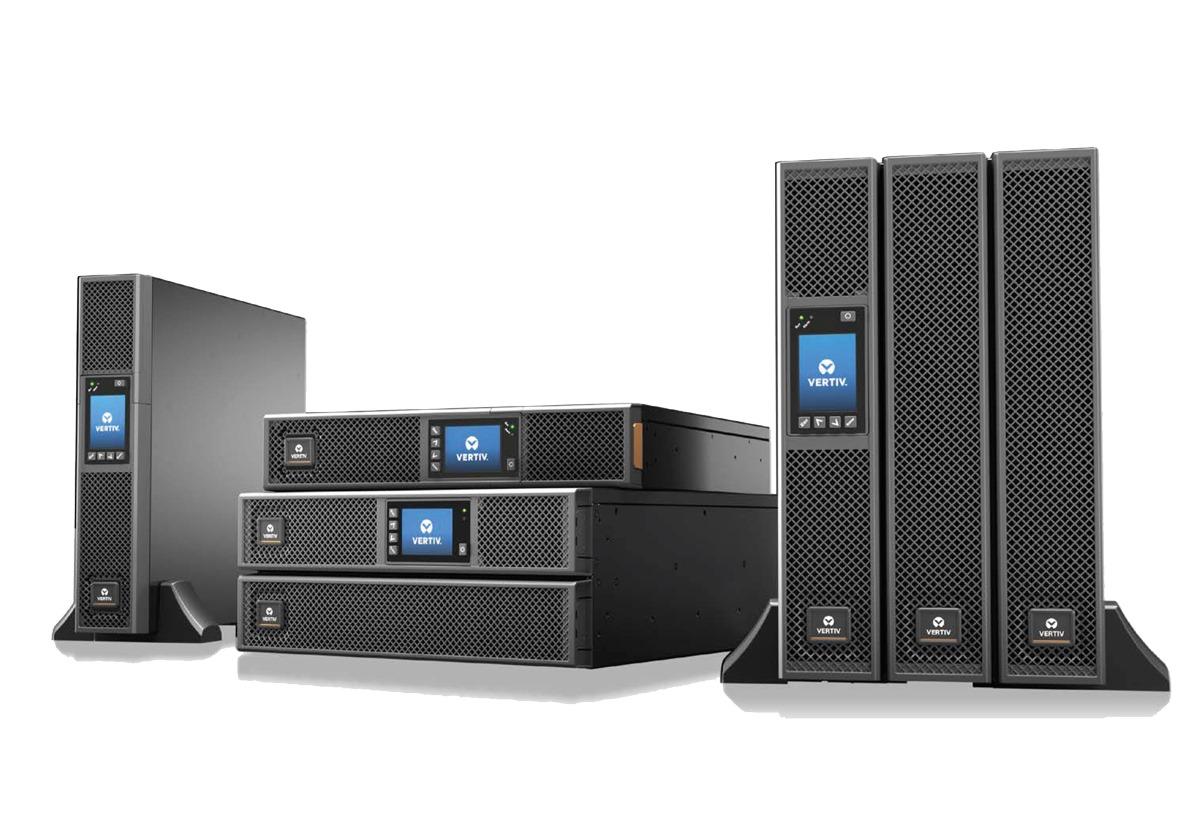

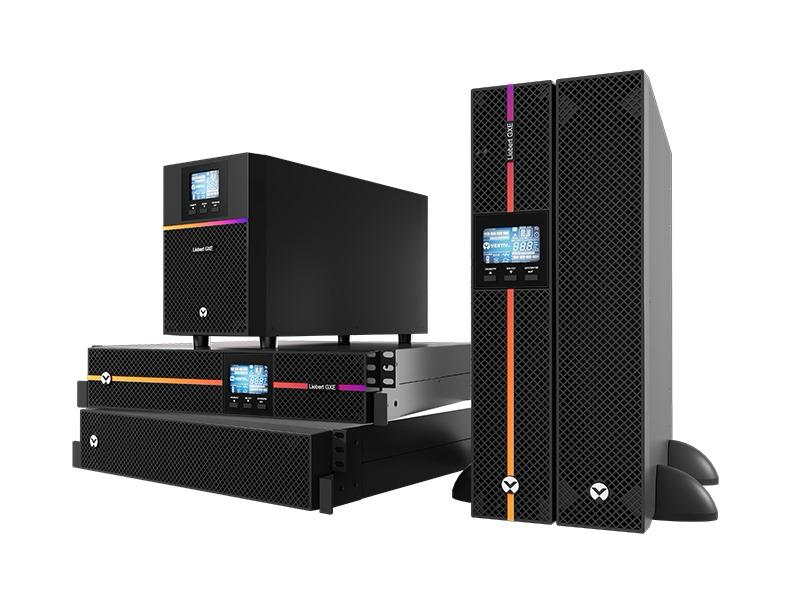

2. Rack-Mount and Floor-Standing UPS Options:



• Rack-Mount UPS:
  • Description: Compact UPS systems designed to fit into standard server racks.
  • Applications: Ideal for IT environments, small data centers, and networking closets.
  • Power Range: 1kVA to 10kVA.
  • Key Features:
    • Space-saving design.
    • Easy integration with existing rack infrastructure.

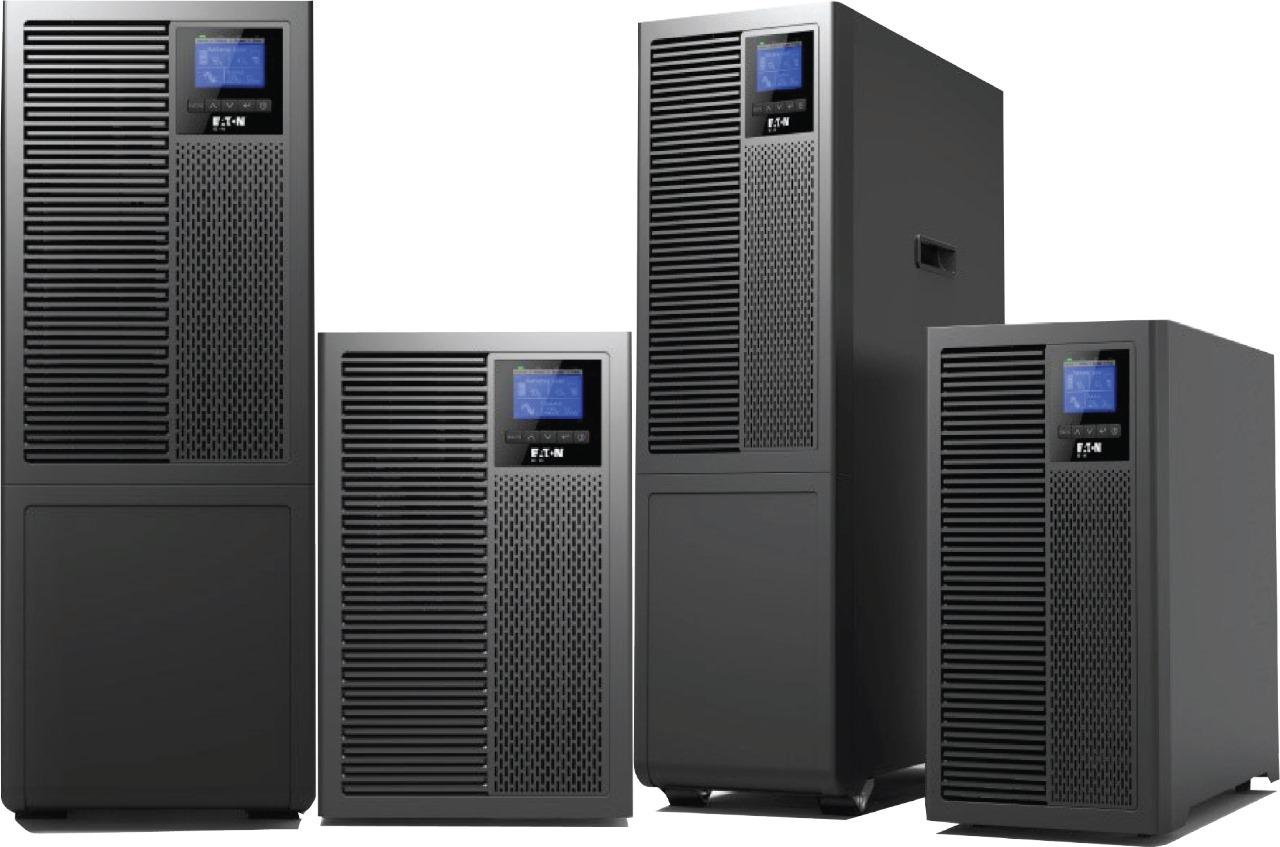

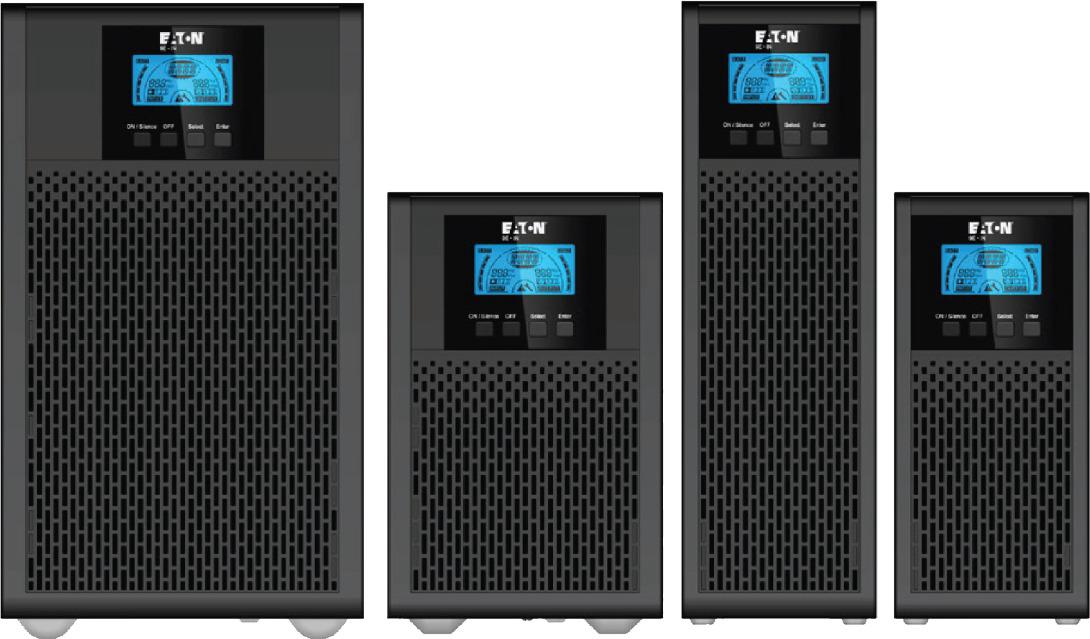

• Floor-Standing UPS:
  • Description: Larger, freestanding units designed for high-capacity backup needs.
  • Applications: Suitable for industrial facilities, healthcare setups, and large data centers.
  • Power Range: 1kVA and Above.
  • Key Features:
    • Higher battery capacity for extended runtimes.
    • Robust designs for critical operations.
2. Battery Systems:
   • Internal Batteries: Compact designs for short-term power backup.
   • External Battery Modules: Scalable solutions for extended backup durations.
3. Control Systems:
   • LCD Displays: Show real-time status of load, input/output voltage, and battery health.
   • Remote Monitoring: Allows users to manage UPS systems via network-connected platforms.
4. Power Distribution Units (PDUs):
   • Distribute power efficiently to multiple connected devices.
   • Offer surge protection and voltage regulation.

3. Key Features

• High Efficiency: Reduced energy consumption through advanced power conversion technologies.
• Scalability: Options for small setups to large enterprises.
• Comprehensive Protection: Guards against surges, voltage drops, and frequency variations.
• Silent Operation: Low noise levels suitable for office and healthcare environments.

4. Applications

• Industries:
  • IT and Data Centers: Protect servers, storage devices, and networking equipment.
  • Healthcare: Ensure uptime for critical medical equipment.
  • Manufacturing: Maintain operational continuity for machinery and control systems.
  • Finance: Safeguard transaction systems and databases.
• Infrastructure:
  • Office buildings, retail stores, and educational institutions.

5. Benefits

• Uninterrupted Operations: Prevents downtime during power outages or fluctuations.
• Equipment Protection: Shields sensitive devices from damage caused by power irregularities.
• Operational Efficiency: Enhances productivity by ensuring a stable power supply.
• Cost Savings: Reduces losses due to data corruption and hardware replacement.
