Structured Cabling System

Structured cabling forms the backbone of modern network infrastructure, ensuring seamless communication and data transfer.

2. Components

UTP Data Cables

Data cables are the foundation of any structured cabling system, responsible for transmitting data reliably and efficiently.

UTP Cables:

1. Cat 8:
   • Supports speeds of up to 40 Gbps over short distances.
   • Best for high-speed data centers and server connections.
   • Reduced latency and enhanced bandwidth capacity.
2. Cat 8a:
   • Enhanced performance over Cat 8, with better shielding and support for high-frequency signals.
   • Ideal for hyper-scale data centers and future-proofing networks.
3. Cat 7:
   • Supports up to 10 Gbps at 100 meters.
   • Features advanced shielding (S/FTP) for superior noise reduction.
   • Suitable for environments requiring low crosstalk and minimal interference, such as smart buildings.
4. Cat 7a:
   • Enhanced shielding and bandwidth compared to Cat 7.
   • Supports frequencies up to 1,000 MHz, making it ideal for multimedia streaming and high-performance networks.
5. Cat 6a:
   • Enhanced shielding to reduce crosstalk.
   • Supports up to 10 Gbps at 100 meters.
   • Ideal for enterprise networks, offices, and smart building setups.
6. Cat 6:
   • Standard for most modern installations.
   • Up to 1 Gbps for 100 meters.
   • Cost-effective for smaller or less-demanding networks.
7. Cat 5e:
   • An entry-level option with support for up to 1 Gbps at 100 meters.
   • Suitable for homes and small businesses.

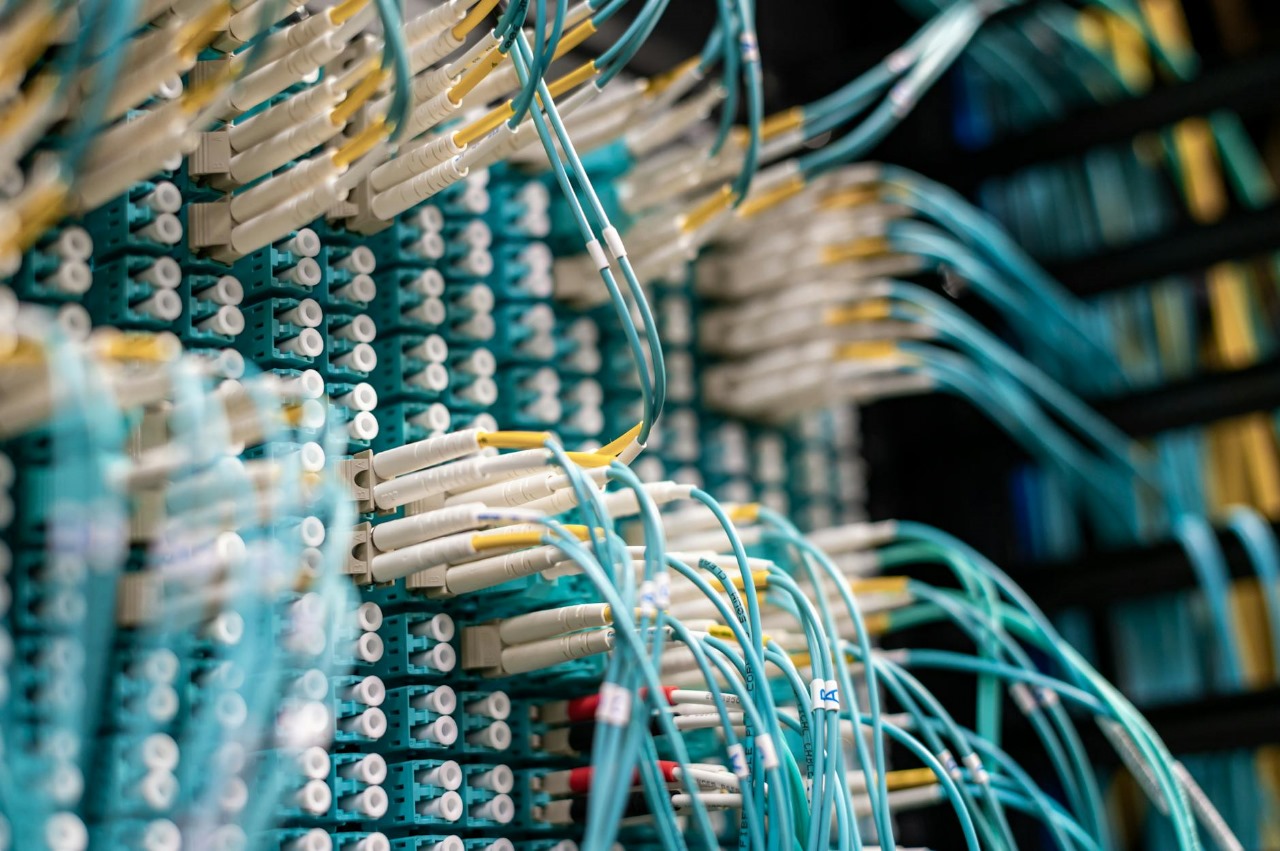

Fiber Optic Cables

Fiber optic cables are the gold standard for modern, high-performance networks, offering unmatched speed and reliability. They are essential for high-bandwidth applications, long-distance transmission, and environments where traditional copper cables fall short.

Types of Fiber Optic Cables

1. Single-Mode Fiber (SMF):
   • Designed for long-distance transmission.
   • Uses a smaller core (about 8-10 microns) that allows only one light mode to pass through.
   • Ideal for telecommunications, data centers, and backbone networks.
   • Supports higher bandwidth over distances of tens to hundreds of kilometers.
2. Multi-Mode Fiber (MMF):
   • Features a larger core (about 50-62.5 microns) to allow multiple light modes to pass.
   • Best for short-distance applications, such as LANs, data centers, and campus networks.
   • Cost-effective for distances up to 500 meters or less.
   • Typically used with LED light sources for lower-cost deployments.
3. Armored Fiber Cables:
   • Includes extra protective layers to resist crushing or rodent damage.
   • Ideal for outdoor or industrial environments.
4. Unarmored Fiber Cables:
   • Lighter and more flexible.
   • Used in internal environments where physical damage is less likely.
5. Drop Cables:
   • Compact and lightweight, designed for connecting distribution points to end-user premises.
   • Ideal for FTTx (Fiber to the x) applications.
6. Aerial Fiber Cables:
   • Installed overhead using poles or towers.
   • Built to withstand wind and environmental stressors.

Advantages of Fiber Optics

1. High-Speed Connectivity:
   • Supports Gigabit and Terabit speeds, making it suitable for high-demand applications like streaming, cloud services, and data-intensive operations.
2. Minimal Signal Loss:
   • Maintains consistent performance over long distances, unlike copper cables that experience significant signal degradation.
3. Immunity to Interference:
   • Not affected by electromagnetic or radio interference, ensuring reliable performance even in high-noise environments.

Fire-Resistant Cables

Designed for safety in environments prone to fire hazards, these cables are essential for mission-critical installations.

Key Features:

• Made with flame-retardant materials.
• Help prevent the spread of fire.
• Maintain functionality during emergencies to support critical systems like alarms and communication.

Applications:

• Hospitals, airports, and high-occupancy buildings where safety is a priority.

3. Passive Components and Networking Accessories

These components enable the seamless integration and functionality of the cabling system.

Key Accessories:

1. Keystone Jacks:
   Modular jacks that snap into patch panels and faceplates.
   • Ensure secure and reliable terminations.
2. Patch Panels:
   Organize and terminate cable connections.
   • Available in standard or high-density options.

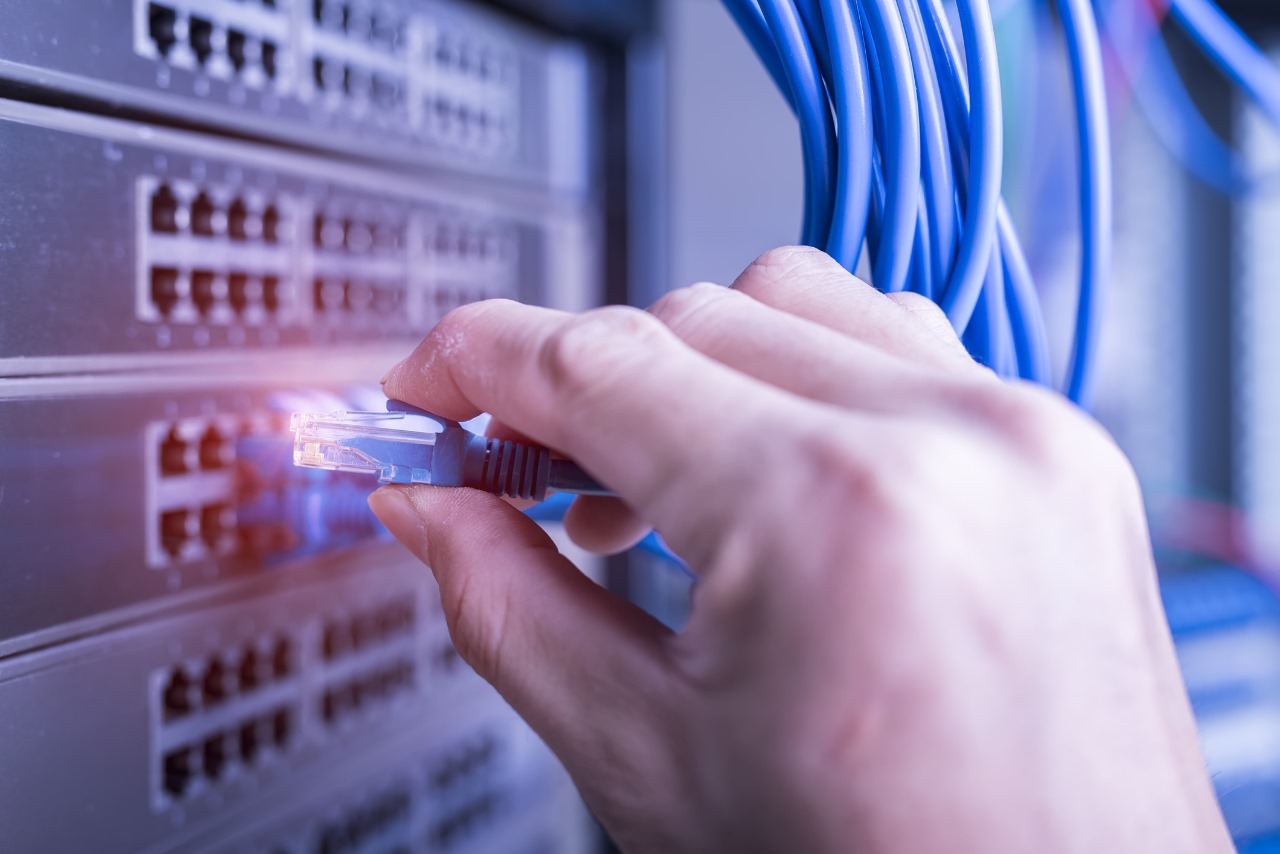

3. Patch Cords:
   Flexible cables that connect devices to the network.
   • Pre-terminated for convenience.
4. Cable Management Tools:
   Velcro ties, clips, and raceways.
   • Maintain neatness and prevent tangling for easier maintenance.
5. Faceplates:
   Cover wall outlets and house keystone jacks.
   • Available in single or multi-port designs.
6. Small Form-Factor Pluggable (SFP):
   • Compact, hot-swappable transceivers used in switches, routers, and other network devices.
   • Support data rates from 1 Gbps (SFP) to 10 Gbps (SFP+), and up to 100 Gbps (QSFP).
   • Compatible with both fiber optic and copper cabling.
   • Enable easy upgrades and flexibility in mixed-media networks.

4. Cabinets & Accessories

Cabinets serve as the physical housing for networking equipment, ensuring security and organization.

Types of Cabinets:

1. Wall-Mount Cabinets:
   • Compact and space-saving.
   • Ideal for small offices or remote locations.
2. Floor-Standing Cabinets:
   • Higher capacity for servers, switches, and patch panels.
   • Essential for data centers and large-scale setups.

Additional Accessories:

1. Power Distribution Units (PDUs):
   • Manage and distribute electrical power efficiently.
   • Industrial-grade PDUs support high-load devices.
2. Cooling Solutions:
   • Maintain optimal operating temperatures for equipment.
   • Includes fans, air-conditioning units, and vented panels.



Key Benefits:

• Scalability: Adapts to growing network demands.
• Reliability: Ensures stable and consistent performance.
• Simplified Management: Streamlines troubleshooting and upgrades.
